更新至新的TouchGFX版本

When a TouchGFX application is created, the .touchgfx project file will have the same version as the TouchGFX Designer/X-CUBE-TOUCHGFX used to create it. 但是，這並不意味著只能使用TouchGFX的特定版本繼續開發應用。

TouchGFX在設計上向後相容，在大多數情況下，它需要一個極簡單的流程使舊版本應用能夠用TouchGFX新版本操作。

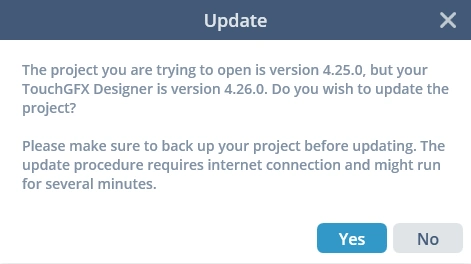

您只需打開新安裝的TouchGFX Designer版本，並嘗試通過最近使用的應用或“打開”對話方塊打開舊版本應用。您將看到下面的彈窗：

更新彈窗

Caution
彈窗首先會建議您在運行更新器前備份應用。

按下“Yes”按鈕，更新器將啟動。完成更新後，將在TouchGFX Designer中照常打開應用，現在可以使用新版本。

在極少數情況下，您必須對應用進行一些手動修改，以使應用完全更新至新的TouchGFX版本。如果您對將應用更新至新版本還有疑問，請參閱“已知問題”部分。

更新TouchGFX Generator​

When you generate code in TouchGFX Designer for a migrated project, TouchGFX updates the TouchGFX version in the project's .ioc file automatically. TouchGFX Designer cannot, however, trigger STM32CubeMX to regenerate code. Since code generation in STM32CubeMX is often required; open the .ioc file in STM32CubeMX, confirm the X-CUBE-TOUCHGFX package shows the intended version, and then generate code.

Before opening the .ioc file, ensure that the new X-CUBE-TOUCHGFX package is installed in STM32CubeMX. You can do this in one of two ways:

  1. In STM32CubeMX go to Help → Manage embedded software packages → STMicroelectronics → X-CUBE-TOUCHGFX. Click the refresh button to fetch the latest packages, select the package, and click Install.

  2. If the release is very new and not yet available from the STM32CubeMX server, download the STMicroelectronics.X-CUBE-TOUCHGFX.x.x.x.zip package from st.com. In STM32CubeMX open Help → Manage embedded software packages → From Local..., select the downloaded ZIP, and click Open.

Software Packages Manager: Install TouchGFX Generator

After either procedure the package will be installed in STM32CubeMX. Then open the .ioc file, verify that X-CUBE-TOUCHGFX has been migrated to the new version, validate the configuration, and generate code.

Note
  • You can update the TouchGFX Generator in STM32CubeMX before updating the .touchgfx file, but the recommended order is to update the .touchgfx file first.
  • For more info on how to install X-CUBE-TOUCHGFX in STM32CubeMX see Installing TouchGFX Generator in STM32CubeMX.
Caution
  • The migration is a two-step process that requires code generation from both STM32CubeMX and TouchGFX Designer.
  • TouchGFX/target code generated by the TouchGFX Generator is written to disk only after you press the Generate Code button in STM32CubeMX.
